Rabbit Powered 1-Wire Weather Station Controller (version 2)

My original Rabbit Processor based 1-wire weather station controller only supported the AAG 1-wire Weather Instrument. This version adds support for a humidity sensor, pressure sensor, and rain gauge. It also uses the Imagine Tools rabbit processor prototype board +5VDC power supply to power the The LINK and the 1-wire bus. A common 18VDC power adapter supplies both the prototype board and the barometer.

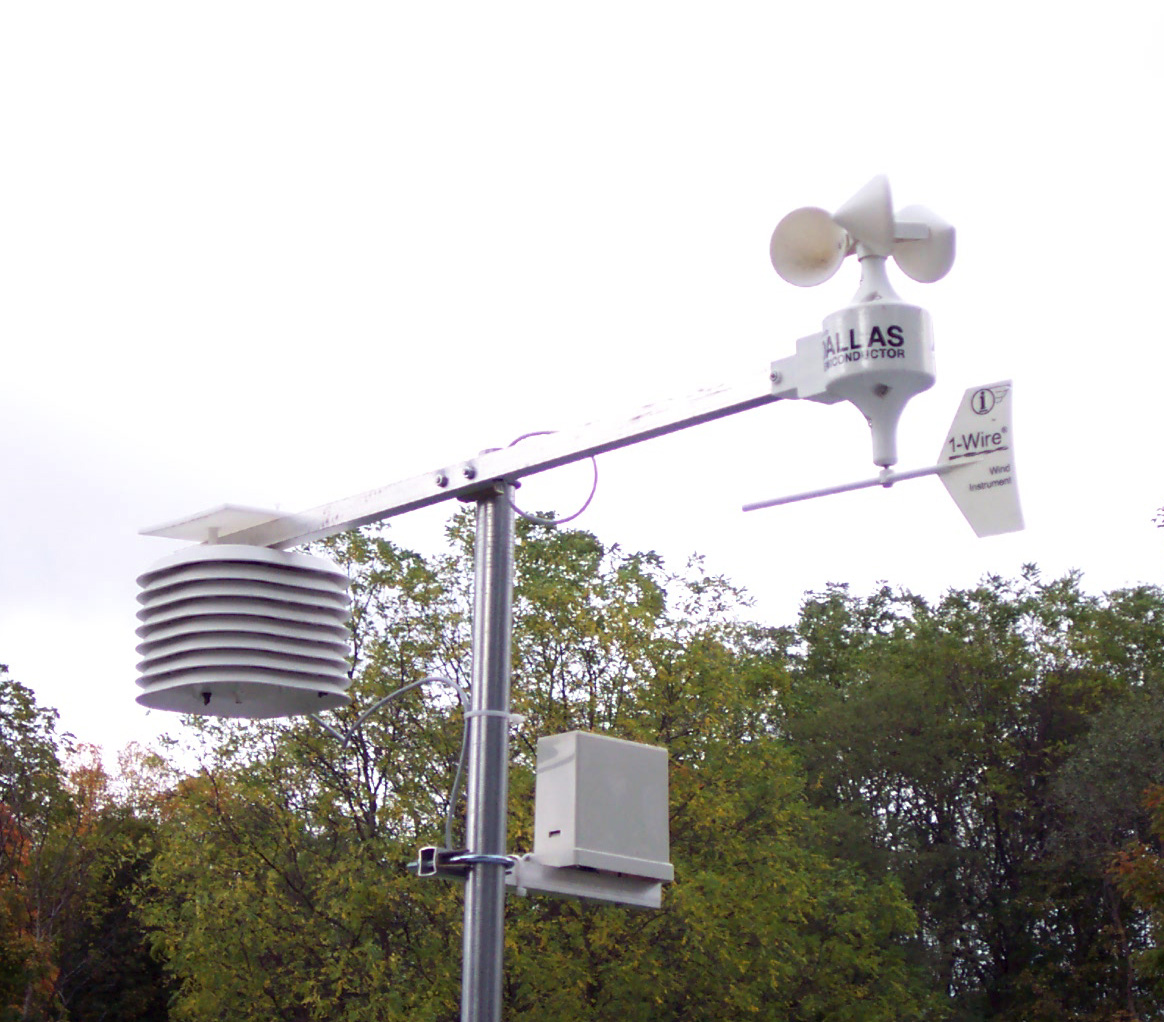

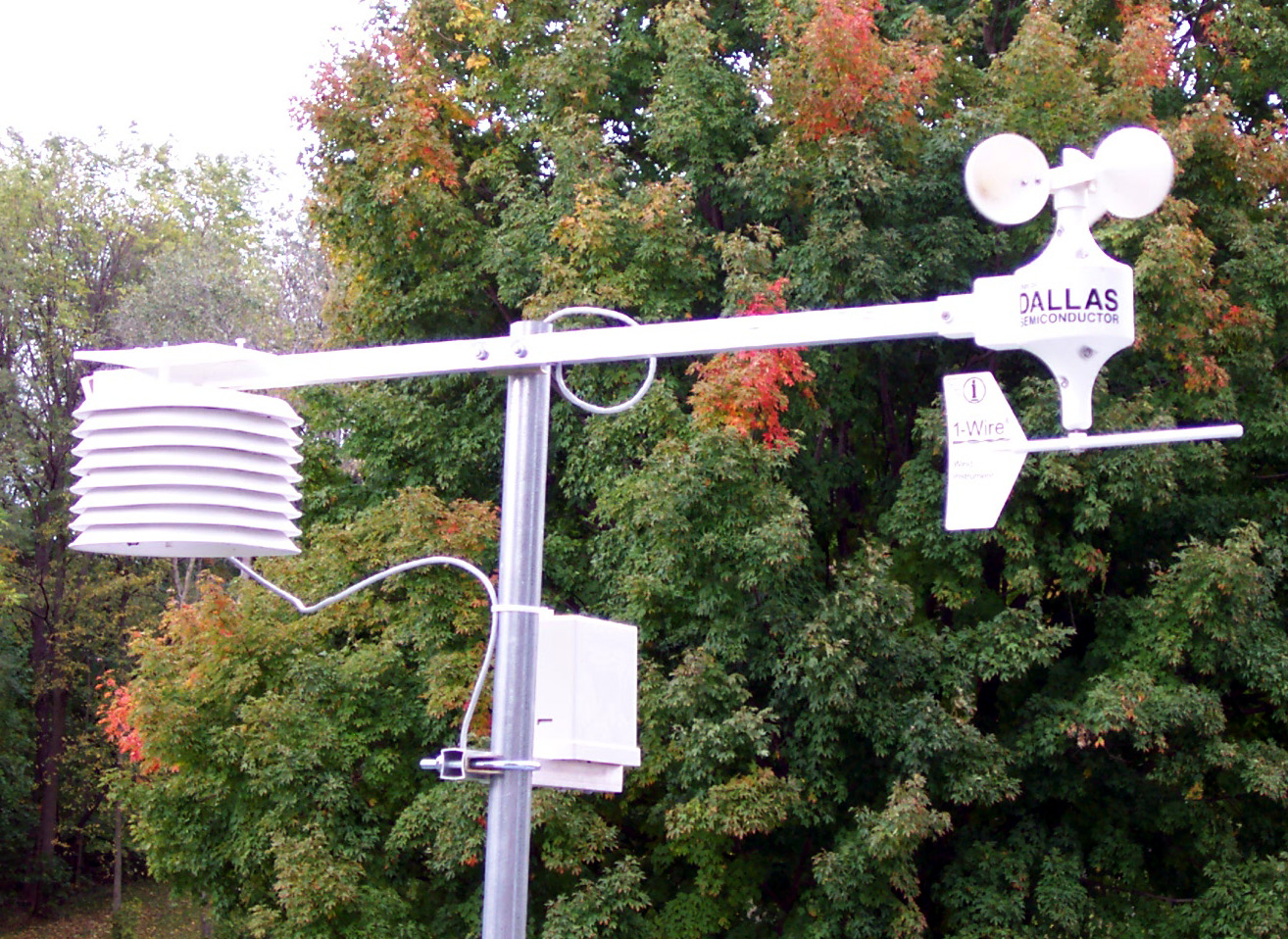

The weather instruments are mounted on top of my garage. The controller and barometer are located inside the garage and are connected to our RoadRunner broadband ethernet connection. The data is posted to the Weather Underground (KNYCLIFT1), Citizen Weather Observer Program (CWOP) station CW3725, and to our local TV station (CBS channel 6 WeatherNet6)

Controller Hardware

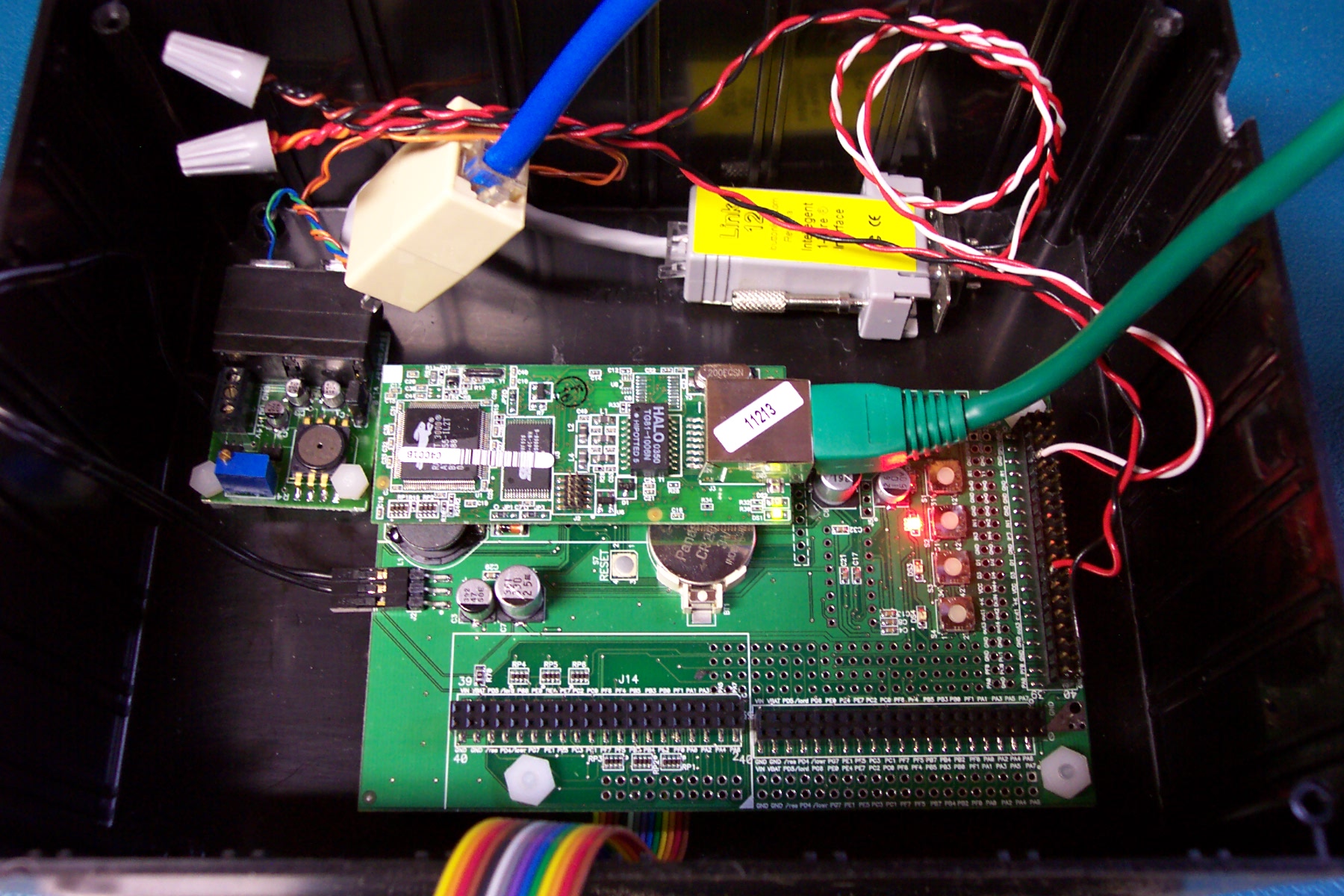

• ImagineTools Ethernet Starter Kit for < $150. (Mouser #609-101-0936)
• The LINK 1-wire serial interface for <$47.
• 8x6x3" Project Enclosure Radioshack #270-1807 for < $7.
• Male DB-9 connector with solder cups <$2 (Mouser #152-5009)

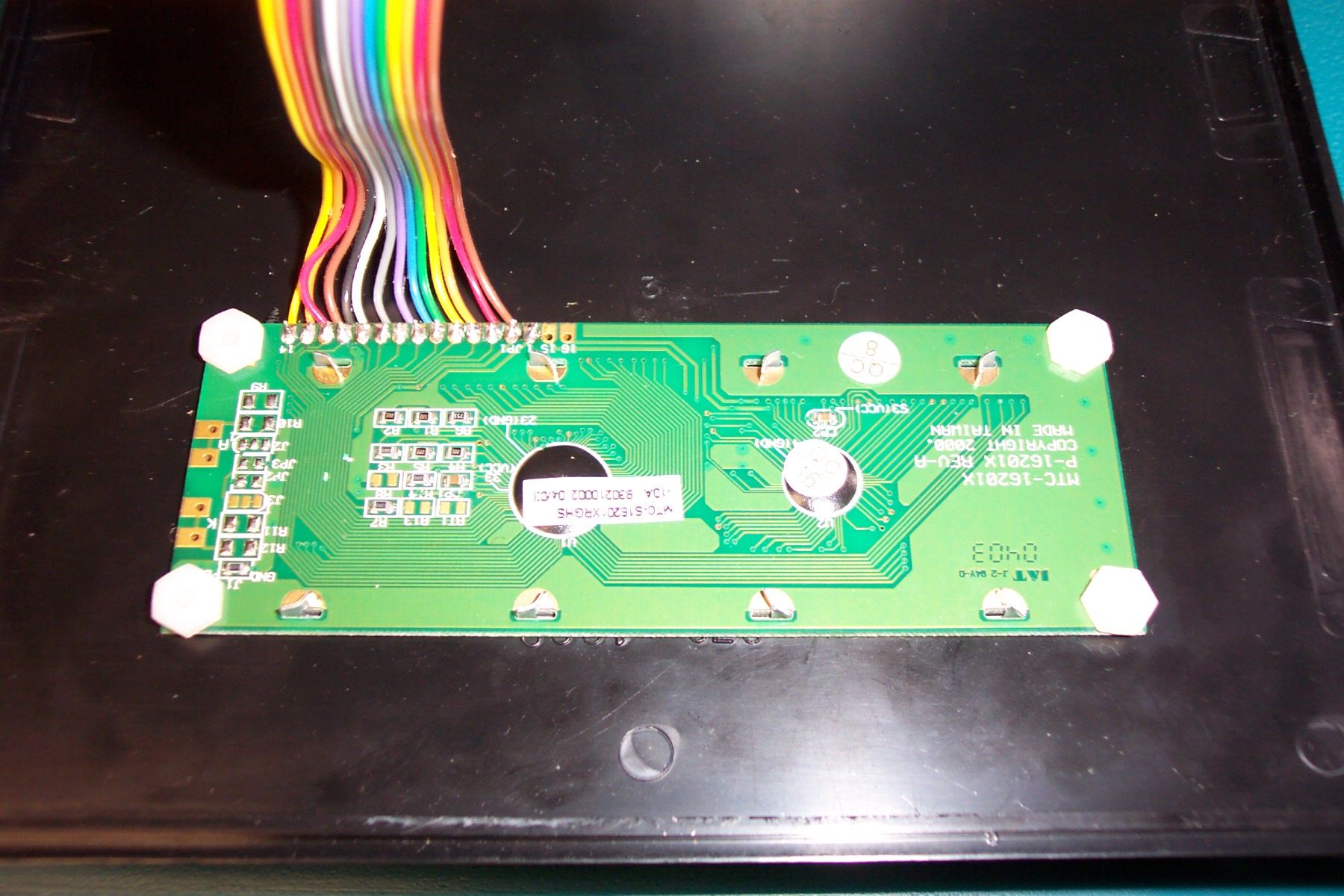

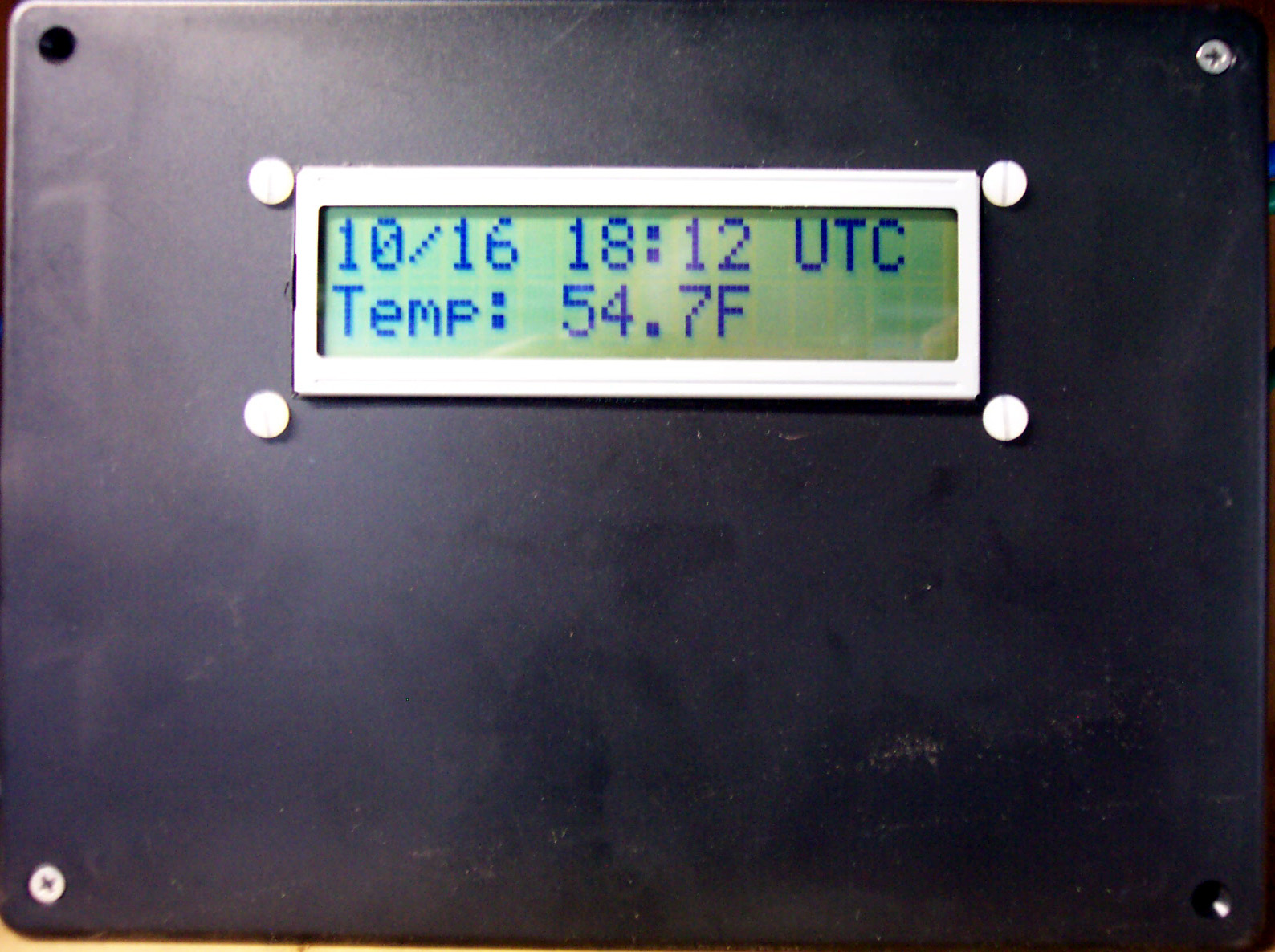

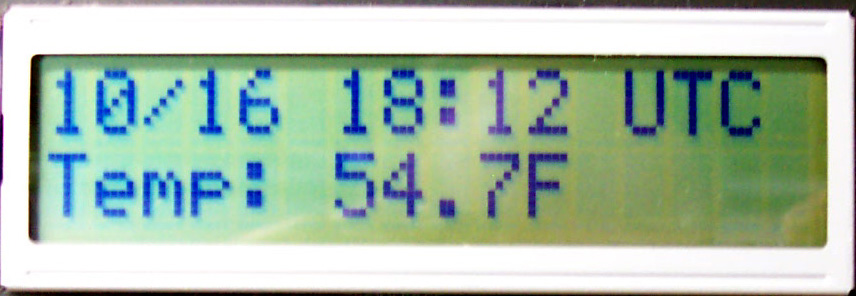

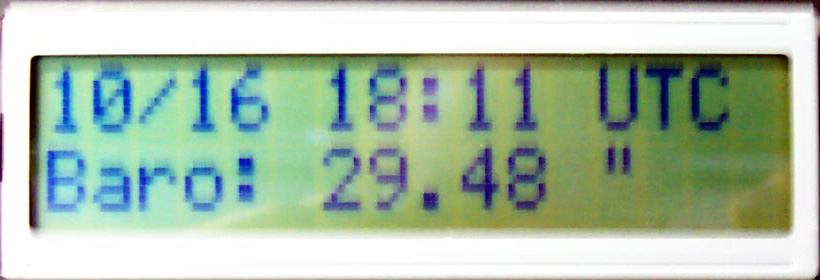

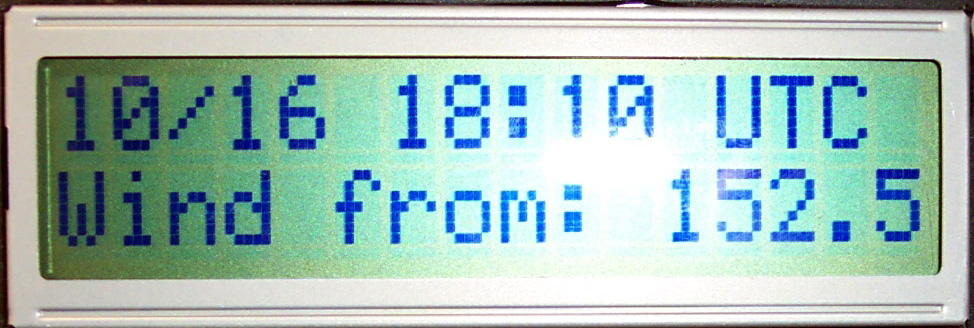

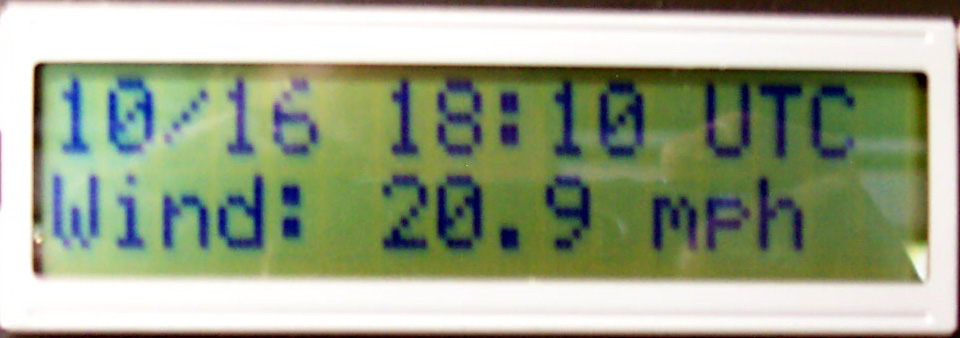

• Microtips Technology 16x2 reflective LCD for < $17 (Mouser #668-C-S16201XRGHS)
• 1 foot of 14 conductor ribbon cable $<2 (Mouser #517-3302/14FT)
• 14 Pin IDC Socket <$3 (Mouser #517-3385-6000)
• 18 VDC power adapter

Weather Instruments

• AAG 1-Wire Weather Instrument Kit V3.0 (TAI8515) for $79.
• AAG TAI8540A 1-wire Humidity module for $42.
• TAI8575 Lacrosse Rain Gauge + 1-Wire counter kit for $67.
• Hobby Boards Barometer [b1-R1-A] for < $60.
• Davis Radiation Shield for <$60.

Software

Other Projects

• IR Snowfall / Snow Depth Sensor
• Collection of other Boltek Lightning Detectors in North America
• Satellite Lightning Overlays of the Northeast US from private Boltek lightning detectors
• Weathercams and weatherstations
• Siteplayer based weathervane
